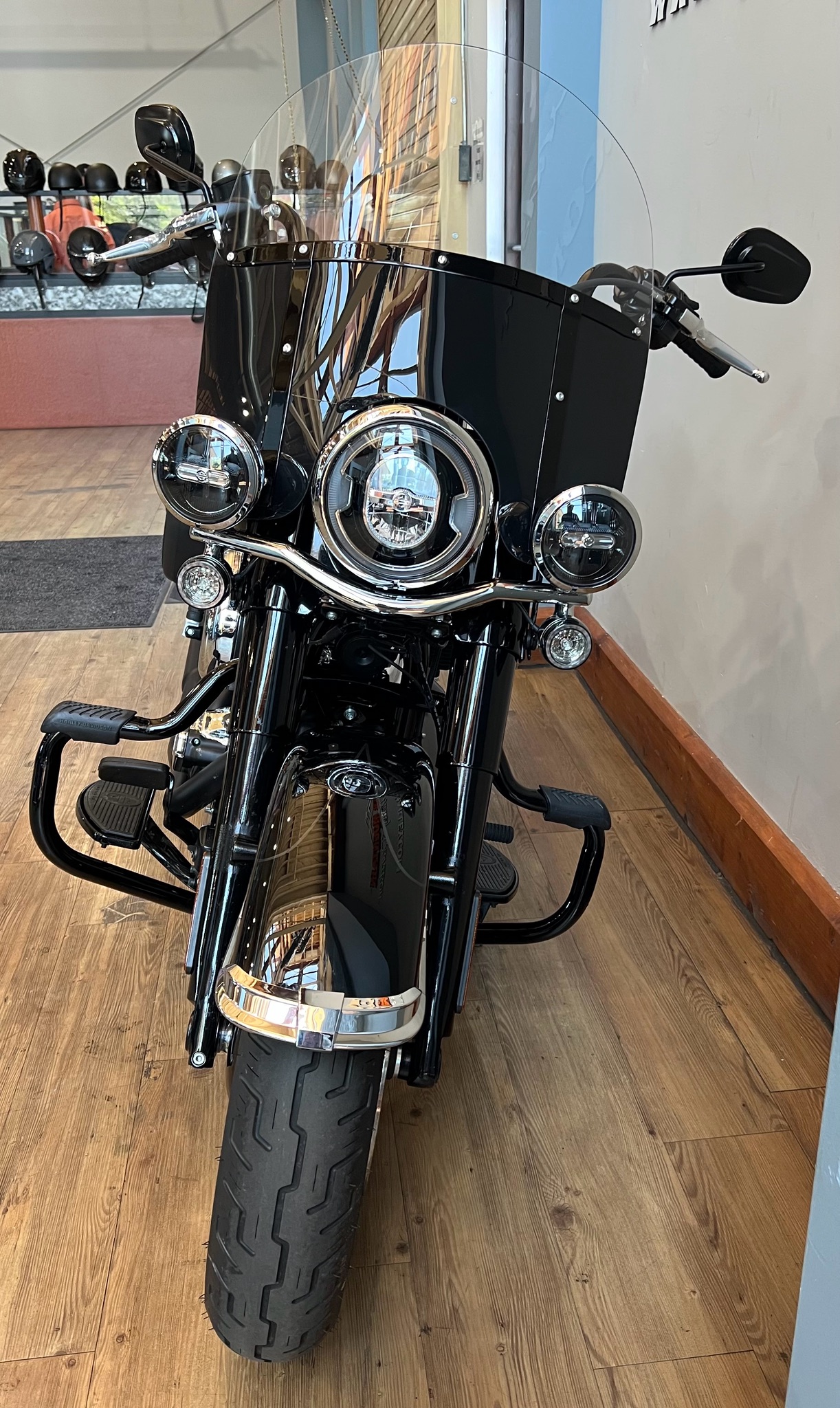

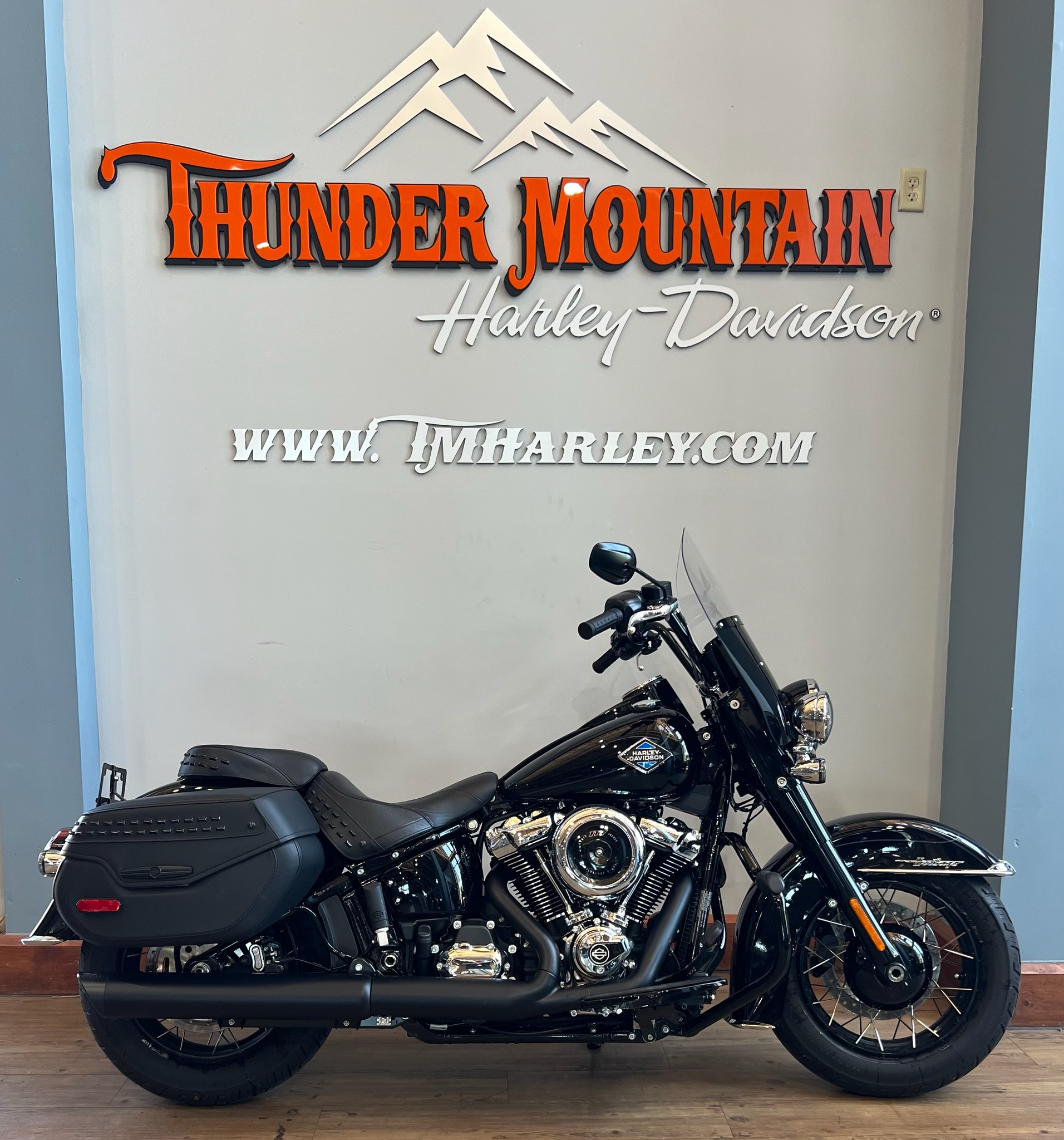

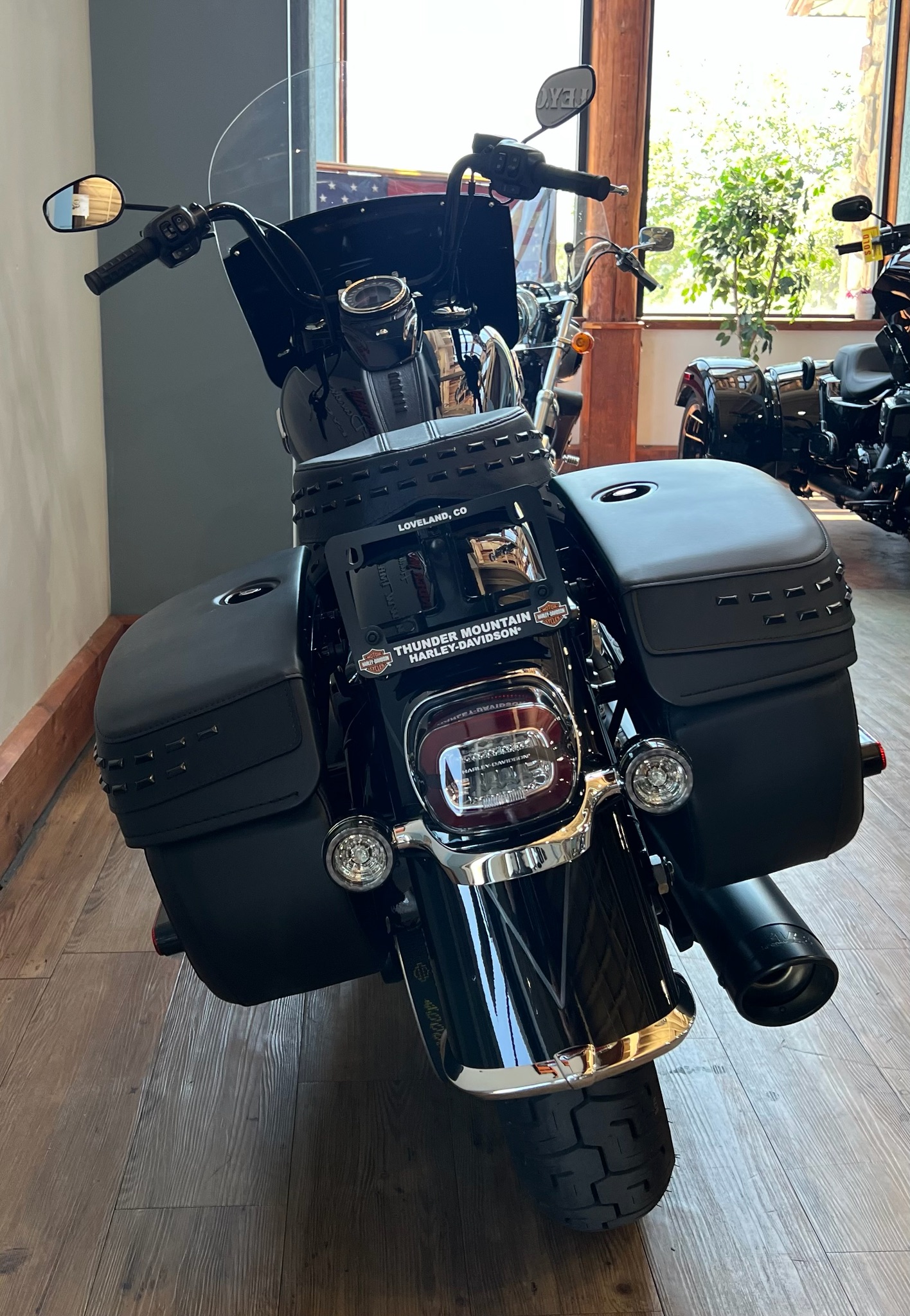

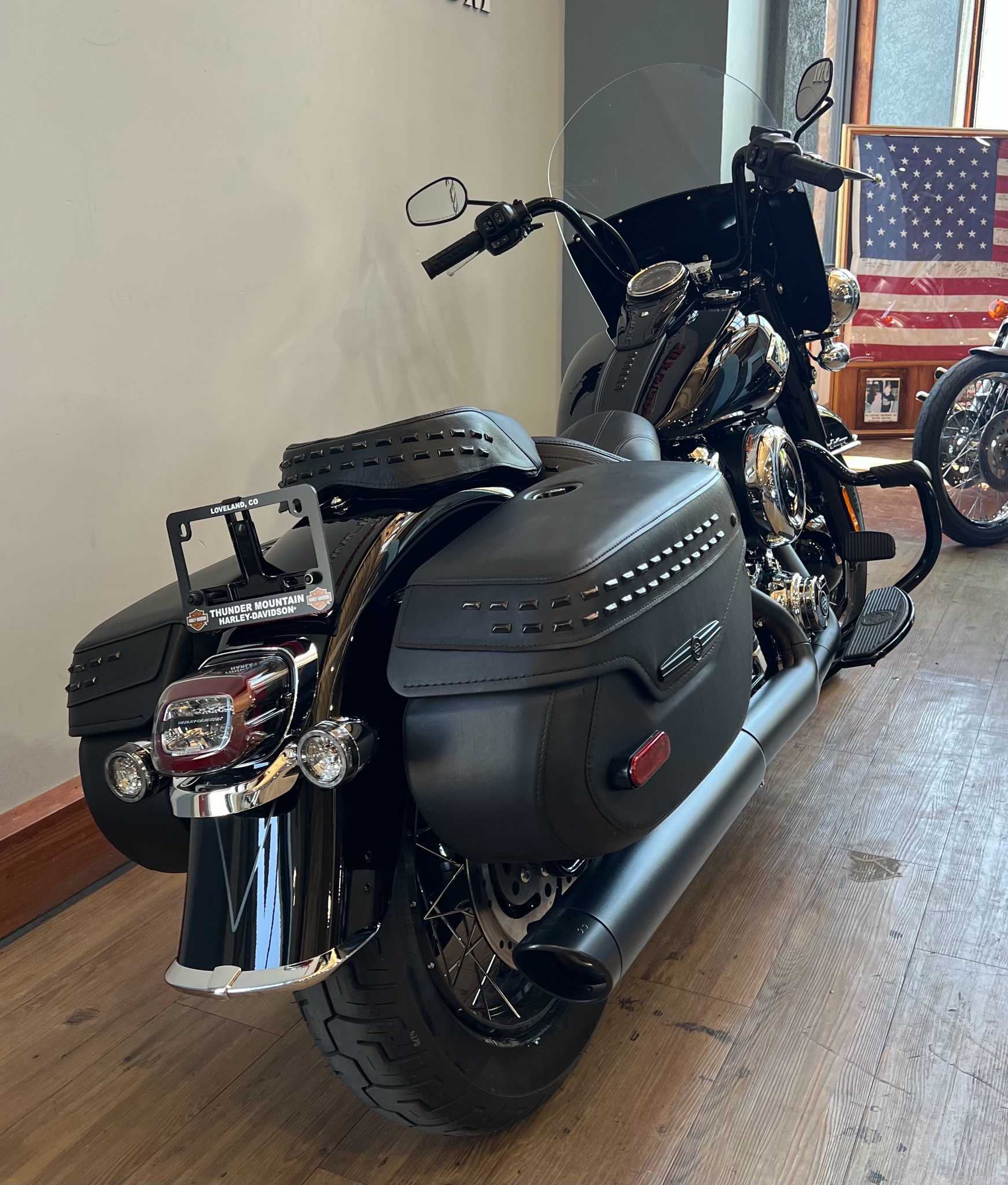

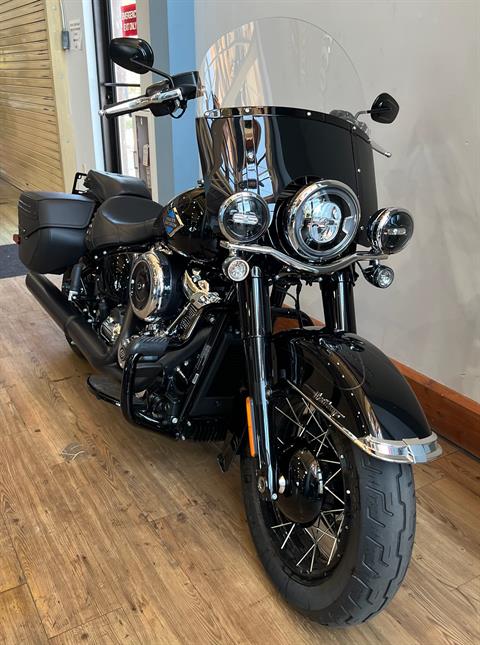

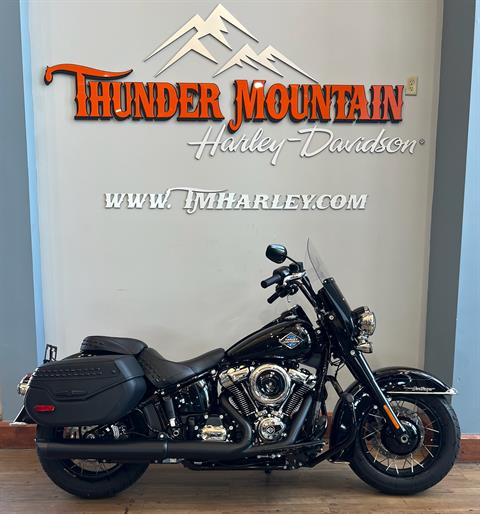

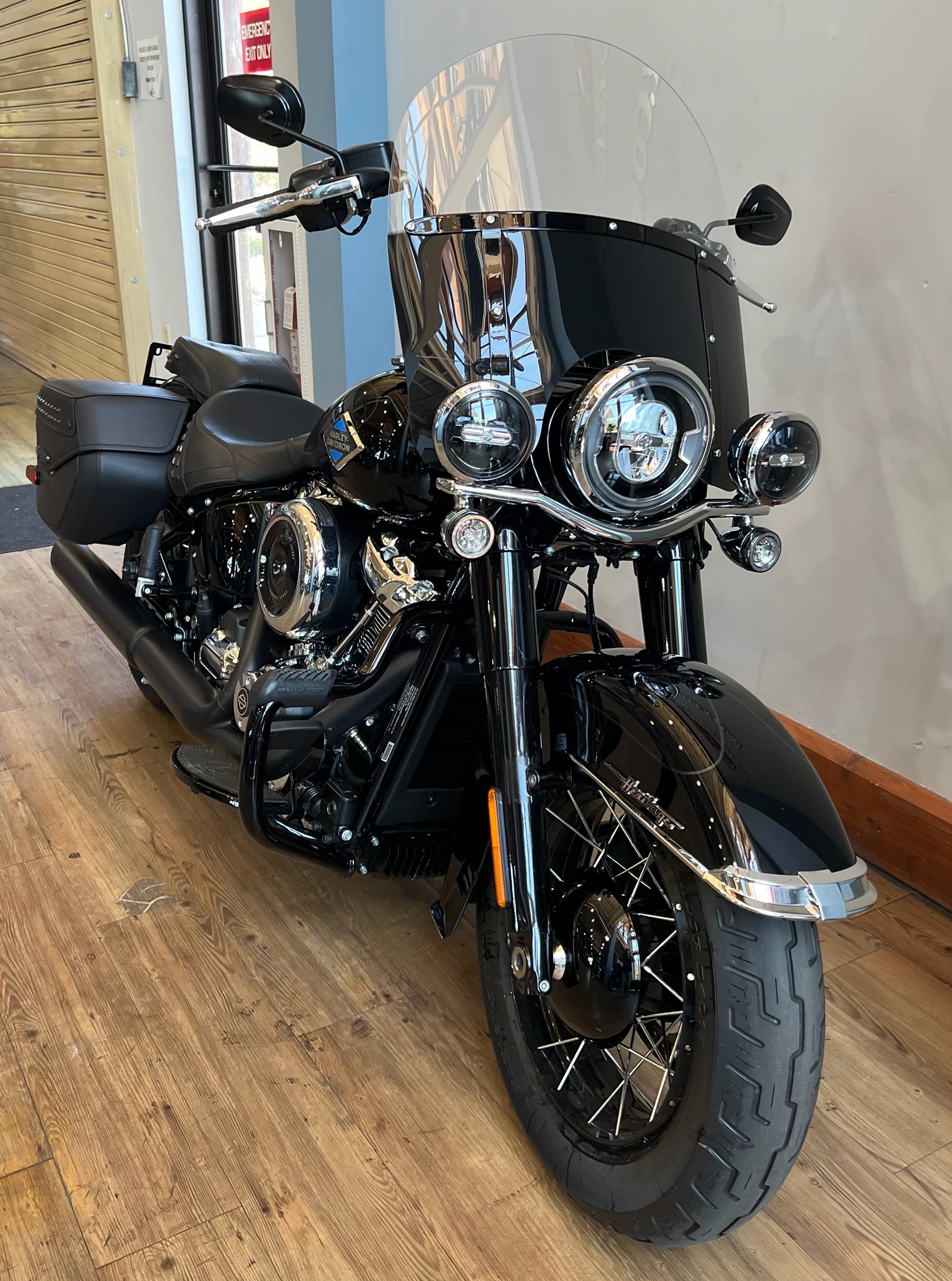

2025 Harley-Davidson Heritage Classic

Front Caliper Type - 4-piston fixed

Rear Caliper Type - 2-piston floating

Rotor Type - Solid, uniform expansion rotors

Front Diameter - 11.8 in. (300 mm)

Front Thickness - 0.2 in. (5 mm)

Rear Diameter - 11.5 in. (292 mm)

Rear Thickness - 0.23 in. (5.8 mm)

Anti-Lock Braking System (ABS) - Standard

Front / Rear Type - Black, 9-Spoke Cast Aluminum³

Front / Rear Diameter - 16 in. (406 mm)

Front / Rear Width - 3 in. (76 mm)

Front / Rear Type - Dunlop® Harley-Davidson Series, bias blackwall

Front Model - D401F

Front - 130 / 90B16, 73H, BW

Rear Model - D401T

Rear - 150 / 80B16, 77H, BW

As Shipped - 697 lb. (316 kg)

In Running Order - 728 lb. (330 kg)

Gross Vehicle Rating - 1,160 lb. (526 kg)

Gross Axle Rating, Front - 450 lb. (204 kg)

Gross Axle Rating, Rear - 730 lb. (331 kg)

Static - 4.7 in. (120 mm)

Right / Left Lean Angle - 27.4°

Lean Angle Testing Method - J1168

Laden - 26.3 in. (668 mm)⁸

Unladen - 26.8 in. (680 mm)

6-Speed Cruise Drive®

Capacity - 1 qt. (0.95 l)

Sealed, maintenance-free, absorbed glass mat (AGM), 12V, 17.5Ah, 310 CCA at 0° F

Charging - Three-phase, 48A system (364W @13V, 900 rpm, 624W max power @ 13V, 2,000 rpm)

(As per country regulation)²

Headlamp - All LED, low beam, high beam and signature position lamp

Tail / Stop - LED Buffett tail lamp

Front Signal - LED bullet turn signals

Rear turn signals - LED bullet light bar

Auxiliary Lamps - LED fog

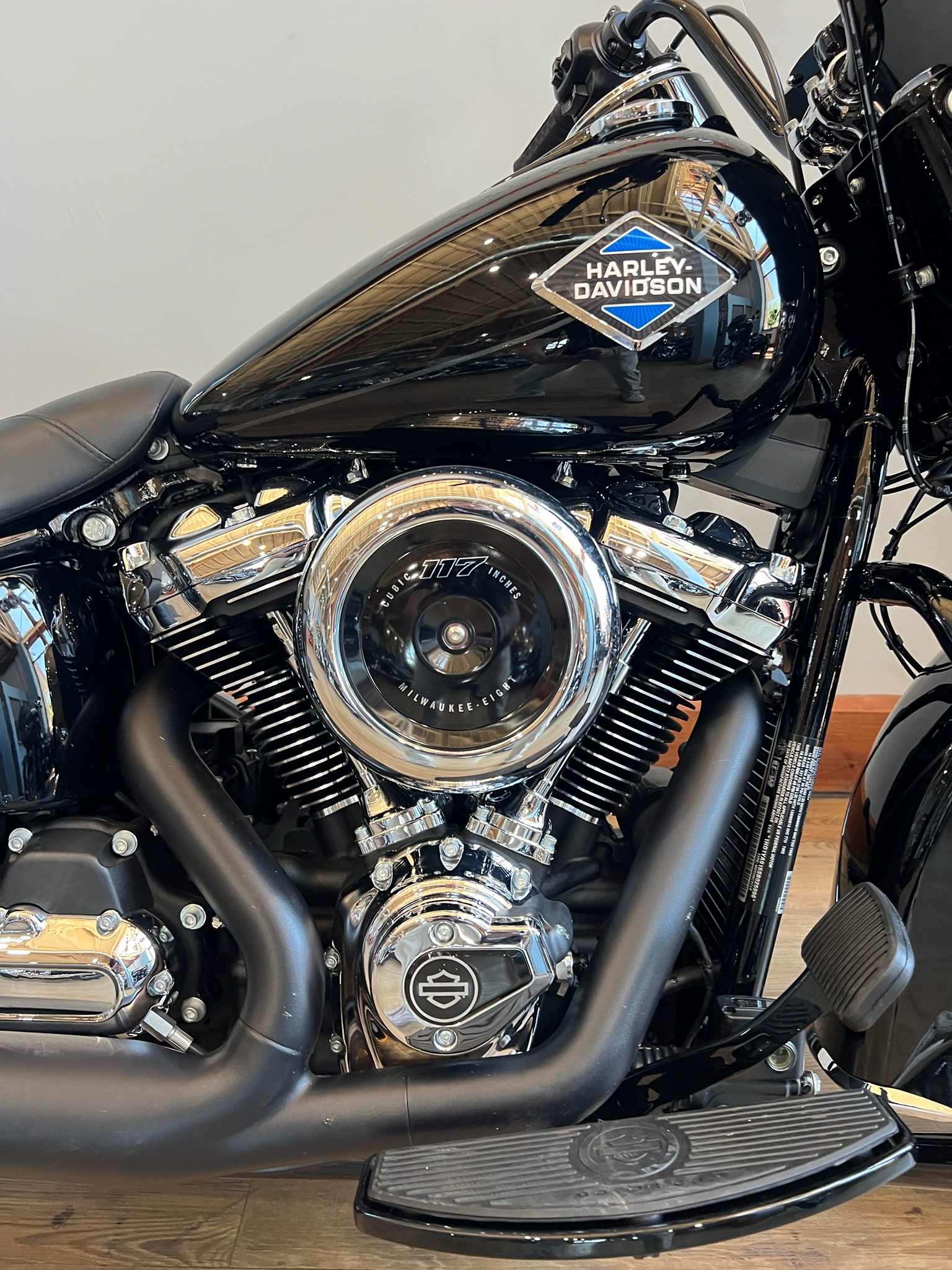

Milwaukee-Eight® 117 Classic⁷

Valves - Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters, four valves per cylinder

Air Cleaner - 9 in. (229 mm) round, center bolt cover with washable fiberglass filter media

120 ft. lb. (163 Nm)⁵ @ 2,500 rpm

Testing Method - J1349

Rider Safety Enhancements - Drag-torque Slip Control System (DSCS), Cornering Drag-Torque Slip Control System (C-DSCS)

Overall

1st - 9.311

2nd - 6.454

3rd - 4.793

4th - 3.882

5th - 3.307

6th - 2.79

5 gal. (18.9 l)

Reserve, Fuel injection (warning light) - 1 gal. (3.8 l)

Mild steel, tubular, rectangular section backbone, stamped, cast, and forged junctions, MIG welded, aluminum forged fender supports

Swingarm - Mild steel, tubular sections, stamped x-member, forged axle junctions, MIG welded, removable belt spacer

Shocks - Hidden, free piston, coil-over monoshock, 56 mm stroke, hydraulic preload adjustment

Travel - 4.4 in. (112 mm)

Billiard Gray with Cast Wheels

Vivid Black with Cast Wheels

White Onyx Pearl with Cast Wheels

Iron Horse Metallic with Cast Wheels

Whiskey Fire / Vivid Black with Cast Wheels

Billiard Gray with Spoked Wheels

Vivid Black with Spoked Wheels

White Onyx Pearl with Spoked Wheels

Iron Horse Metallic with Spoked Wheels

Whiskey Fire / Vivid Black with Spoked Wheels

Security System - Standard

Cruise Control - Standard

Rider Safety Enhancements - Tire pressure monitoring system (TPMS)

24 months (unlimited mileage)

First 1,000 mi. (1,600 km), every 5,000 mi. (8,000 km) thereafter
