2025 Harley-Davidson Pan America® 1250 ST

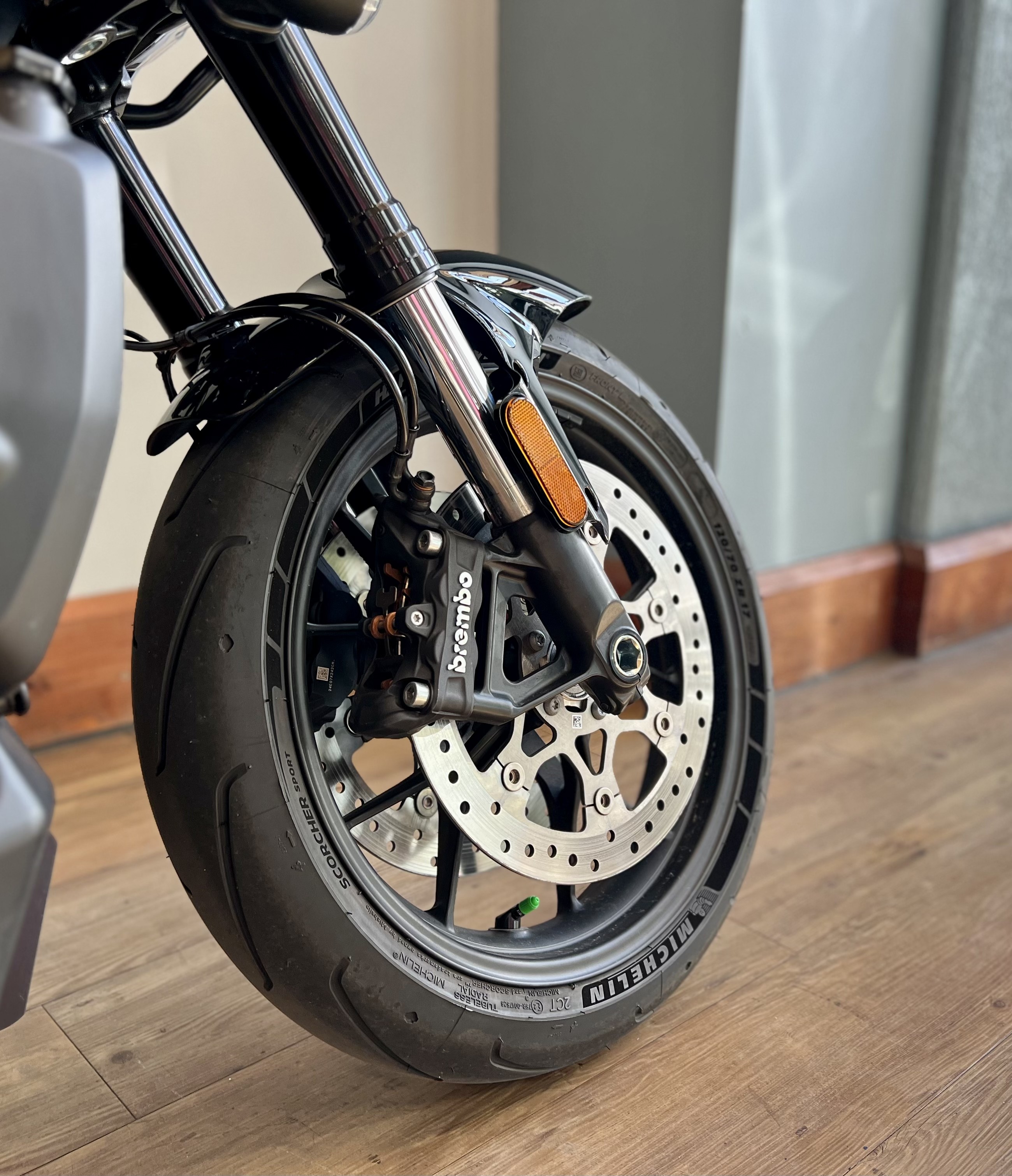

Front Caliper Type - Radially mounted, monoblock, 4-piston caliper

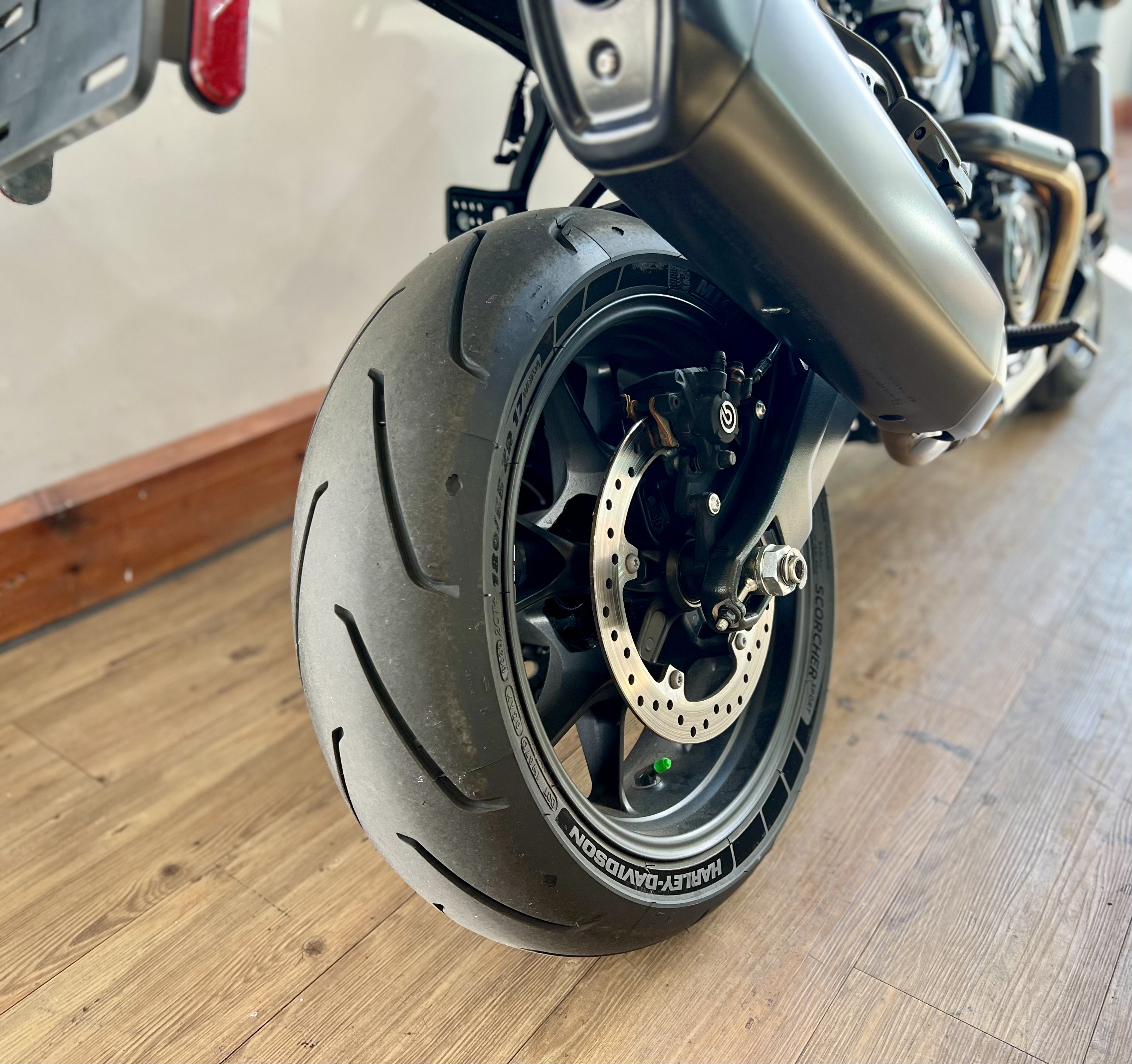

Rear Caliper Type - Floating, single piston caliper

Front Rotor Type - Dual rotor, floating, hub mounted

Rear Rotor Type - Solid uniform expansion rotor

Front Diameter - 12.6 in. (320 mm)

Front Thickness - 0.17 in. (4.5 mm)

Rear Diameter - 11 in. (280 mm)

Rear Thickness - 0.2 in. (5 mm)

Front is dual - Yes

Anti-Lock Braking System (ABS)

Front / Rear - Aluminum cast, satin black³

Front / Rear Diameter - 17 in. (432 mm)

Front Width - 3.5 in. (89 mm)

Rear Width - 5.5 in. (140 mm)

Rider Safety Enhancements - Wheel Lift Mitigation

Type - Michelin® Scorcher "Sport"

Front - 120 / 70ZR17 58W

Rear - 180 / 55ZR17 73W

Front / Rear Model - Scorcher Sport

Rider Safety Enhancements - Tire Pressure Monitoring System (TPMS)

As Shipped - 507 lb. (230 kg)

In Running Order - 542 lb. (246 kg)

Gross Vehicle Rating - 1,003 lb. (455 kg)

Gross Axle Rating, Front - 399 lb. (181 kg)

Gross Axle Rating, Rear - 665 lb. (302 kg)

Static - 6.7 in. (170 mm)

Lean Angle Testing Method - J1168

Right / Left Lean Angle - 37°

Sealed, maintenance-free, absorbed glass mat (AGM) battery, 12V, 17.5Ah, 310 CCA at 0°F

Charging - Three-phase, 45A system (390W @13V, 1,300 rpm, 585W max power @ 13V, 2,500 rpm)

(As per country regulation)²

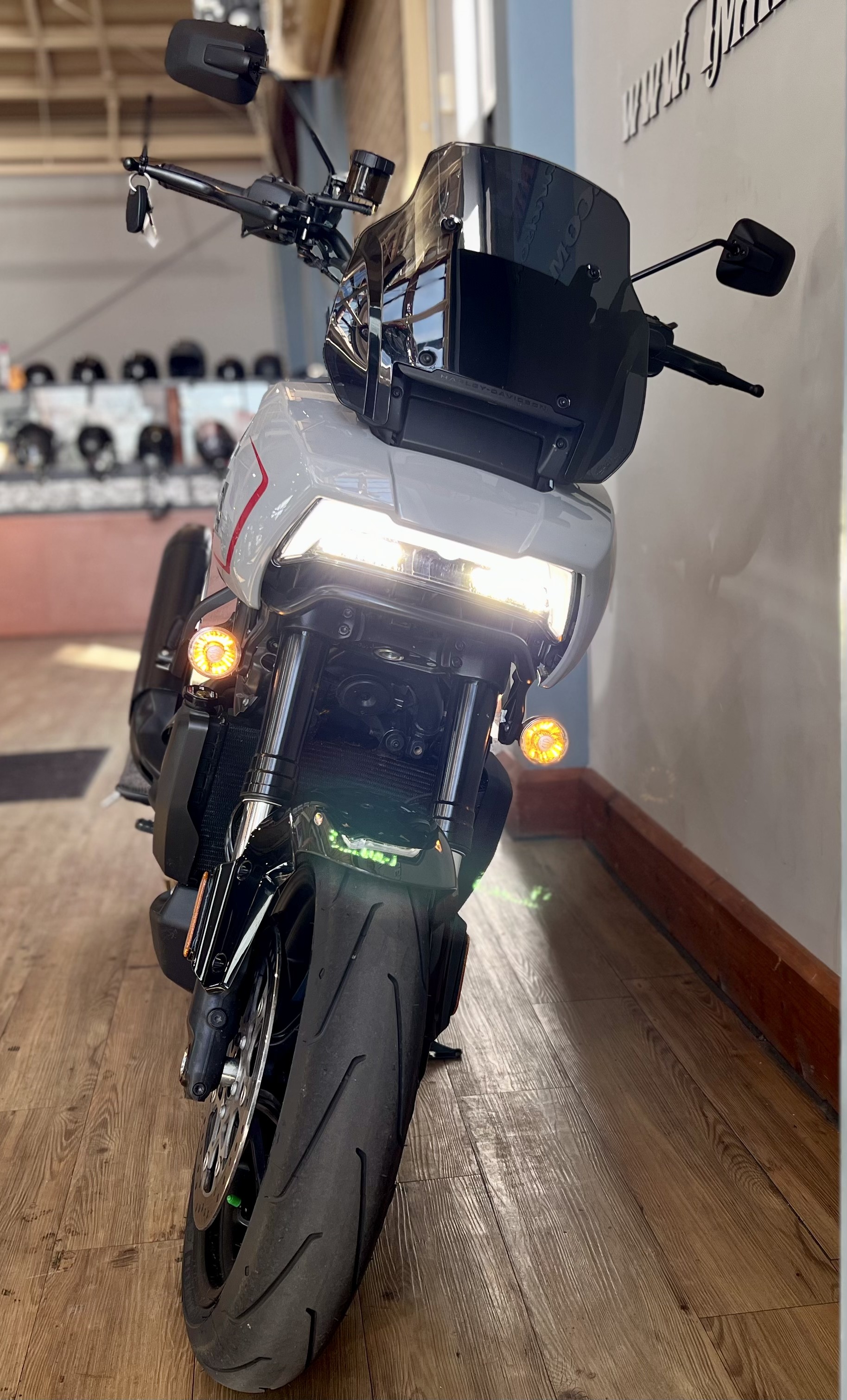

Headlamp - Daymaker® Adaptive LED Headlamp

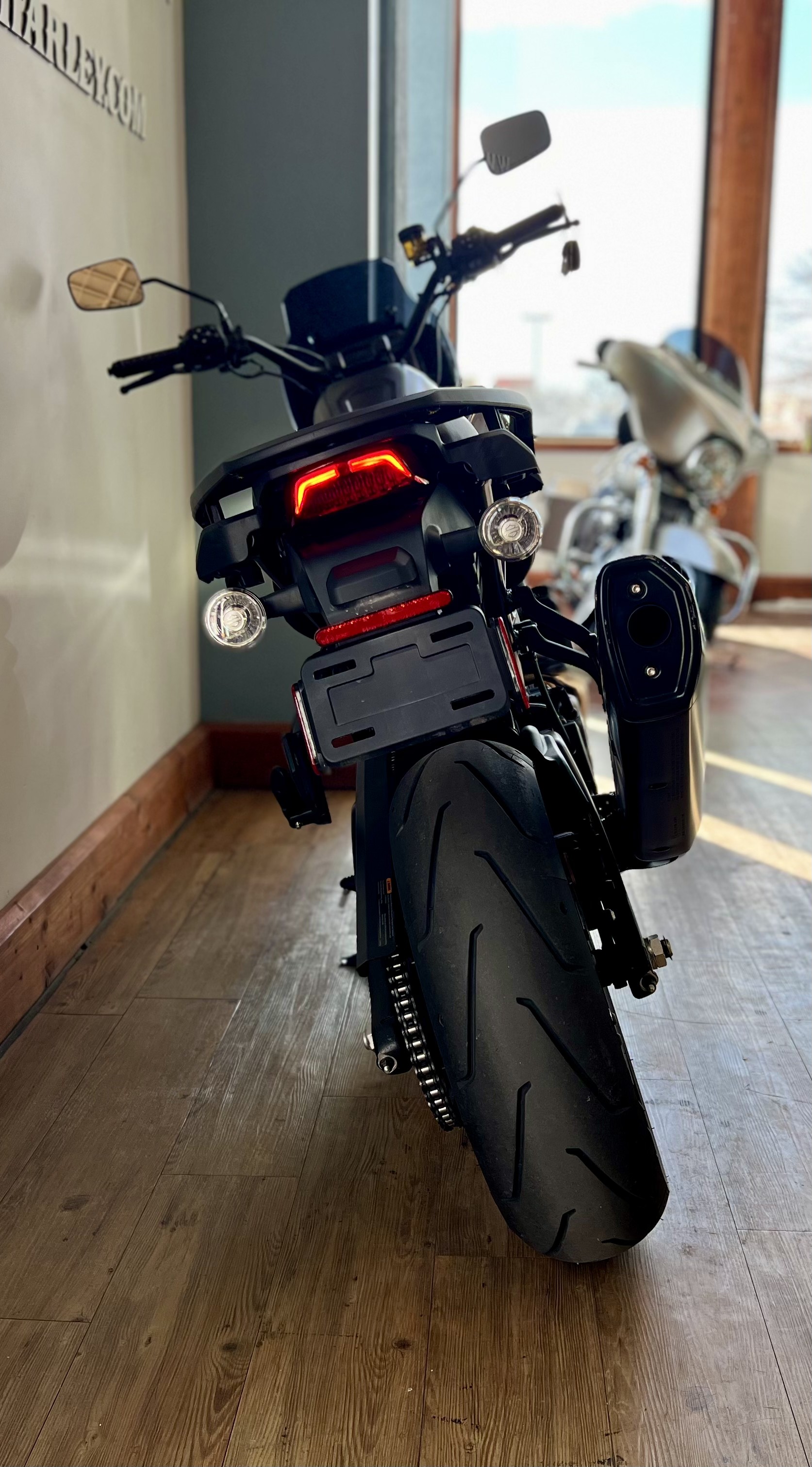

Tail / Stop - All LED Tail / Stop lamp with signature tail lighting

Front Signal Lights - LED Bullet Turn Signals

Screen Size - 6.8 in. (173 mm)

Type - Color TFT with Touch

Headset Specifications (if equipped) - Bluetooth

Languages - Arabic, Chinese (Simplified / Traditional), Czech, Danish, Dutch, English (default), Finnish, French (Canada / France), German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Portugal / Brazil), Indonesian, Russian, Slovak, Spanish (Mexico / Spain), Swedish, Thai, Turkish, Vietnamese

Hands-free Mobile Phone - via Bluetooth - Standard

Voice Recognition Languages - Phone functions only, Tuner / Media / Navigation - Phone dependent

Rider / Passenger Intercom - Headset function only

Vehicle Information Screen (Air temperature, oil pressure and EITMS) - TPMS, Engine temp, Battery Voltage, Ambient Air Temp

Text-to-Speech (TTS) Languages - Phone dependent

USB - Charging and Instrument update, USB-C, 5V, 3A

Bluetooth - Phone / Media Supported

Navigation - via Bluetooth - H-D Mobile App

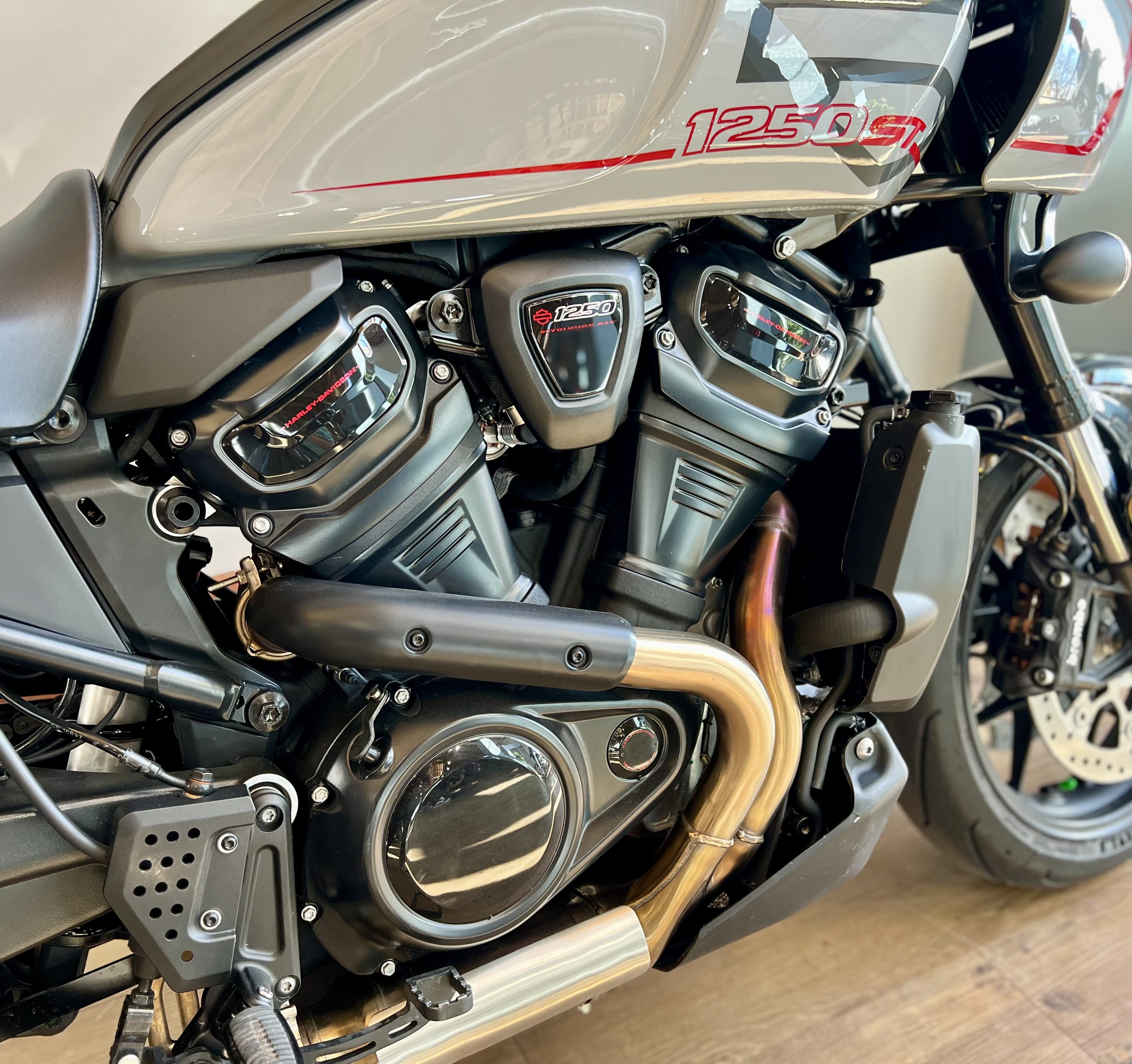

Revolution® Max 1250⁷

Valves - Chain-driven, DOHC, hydraulic self-adjusting lifters, intake and exhaust VVT, four valves per cylinder

Air Cleaner - Downdraft intake, tuned velocity stacks, washable filter media

91 ft. lb. (124 Nm)⁵ @ 6,750 rpm

Testing method - J1349

Rider Safety Enhancements - Drag-torque Slip Control System (DSCS), Cornering Drag-Torque Slip Control System (C-DSCS)

Overall

1st - 13.11

2nd - 9.687

3rd - 7.509

4th - 6.057

5th - 5.08

6th - 4.436

5.6 gal. (21.2 l)

Reserve, Fuel Injection (warning light) - 1 gal. (3.8 l)

Stressed-member, high strength low alloy steel trellis frame, stamped, cast, and forged junctions, MIG welded, aluminum forged mid-structure

Swingarm - One-piece cast aluminum

Travel - 6.7 in. (170 mm)

Shocks - Linkage-mounted monoshock with automatic electronic preload control and manually adjustable compression and rebound damping

Angle - 25°

Front - 18 in. (47 mm) inverted fork with electronically adjustable preload and manually adjustable compression and rebound. Aluminum fork triple clamps

Billiard Gray

Vivid Black

Brilliant Red

Security System

Cruise Control

Rider Safety Enhancements - Vehicle Hold Control (VHC), Enhanced Lift Mitigation

24 months (unlimited mileage)

Service Interval - First 1,000 mi. (1,600 km), every 5,000 mi. (8,000 km) thereafter
